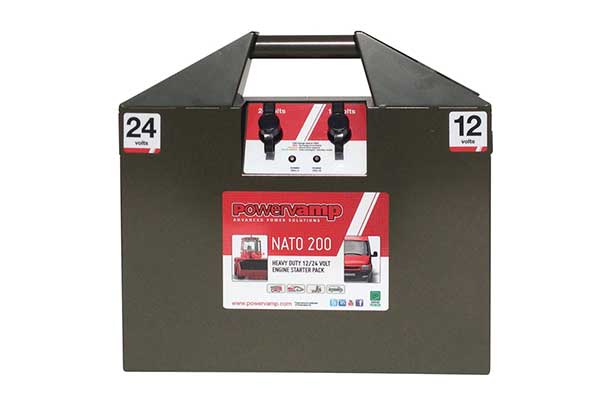

Nato 200
12/24V Heavy Duty Jump Start Pack

Ultra heavy duty 12V/24V DC jump start pack built into a steel case and designed for the multi-starting of large commercial vehicles and plant up to 18 litres, and all 12V vehicles.

  • 2450 peak amps
  • Sealed lead acid AGM battery
  • Detachable 1000A croc clip lead set
  • 2 x internal 3-stage chargers
  • Individually fused outputs
  • Charge status LEDs
  • Reverse polarity audible warning
  • Voltage spike suppression PCB

Product Information

Product Information

The premium Nato range of 12V/24V jump start packs have been designed for the multi-starting of large commercial engines. The packs are fitted with high capacity dry cell batteries capable of delivering massive cranking power, making them ideal for maintenance operations such as fuel bleeding, oil pressure build-up, tail-lift cycling as well as frequent engine starting.

The Nato 200 is fitted with 2 x 45Ah dry cell batteries isolated by twin heavy-duty 1000A key switch isolators with dust covers. Both 12V and 24V outputs are protected against short circuit, or excessive engine cranking, by individual 750A fuses.

The Nato 200 has 2 x 2.3A, 3-stage internal chargers fitted ensuring both batteries are charged independently to maximise battery life. Each charger have a 3 coloured LED to indicate each stage of its charge cycle.

The standard 2m, 50mm2 highly flexible output cables allow the operator to safely connect to a flat battery within the engine bay whilst the pack remains on the floor.

The cables terminate with fully cast 1000A braided croc clips, ensuring an equal power delivery with minimal volts loss. The cables are detachable to allow for easy storage or replacement.

Optional accessories include bus plug (cowbell) lead sets, a powerful 24V inspection lamp and an ‘on board charge kit’ (OBCK) to allow the pack to be charged via any 12V vehicle cigarette/auxiliary socket. Longer lead sets are also available.

Supplied with:

2m Croc Lead

2m Croc Lead

Lead Light

240v Mains Lead

Optional Extras:

Cowbell/Bus Plug Lead

2m Cowbell/Bus Plug Lead

Cowbell/Bus Plug Lead

4m Cowbell/Bus Plug Lead

4m Croc Lead

4m Croc Lead

Rechargeable Inspection Light

Rechargeable Inspection Light

On-board Charge Kit

On-board Charge Kit

Universal Trolley

Universal Trolley

Typical power plant*

NATO NATO

All Features

All Features

  • High powered sealed lead acid AGM battery
  • 2 x 2.3A 3-stage internal chargers
  • 2 x LED battery status display
  • 2m (6ft) detachable lead with 1000A croc clips
  • Tough steel case with integrated handle
  • Audible reverse polarity warning buzzer
  • Voltage spike protection PCB
  • Auxiliary socket for charging and plug-in accessories
  • Twin output key switch isolators
  • Removable rear panel for easy maintenance
  • Individual 750A fused outputs

Technical Specs

Technical Specifications

Peak amps
2450A
Nominal voltage 12V / 24V DC
Standing voltage 12.8V / 25.6V DC
Amp/hour capacity 45 Ah @ 10hr rate (20°C)
Fuse rating 750A
Operating temp -40°C to +45°C (-40°F to 114°F)
Case Powder coated mild steel
Automotive cable 2m (6ft) lead set with 1000A croc clips
Charger 2 x 12V 2.3A 3-stage / 100-260V AC/ 50-60Hz / single phase internal chargers /td>
Dimensions H 435mm (17in), L 450mm (18in) x W 110mm (4in)
Weight 33kg (72lb)
