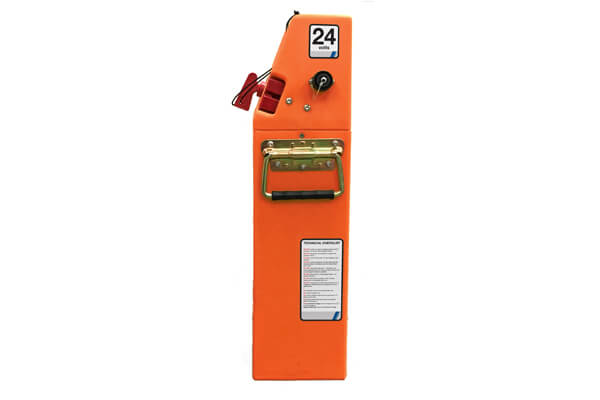

12/24V GA Pack
12/24V Aircraft Start Unit
Need help picking
the right GPU?
Try our new GPU
Selector Guide
A tough, budget-priced, dual voltage aircraft start unit designed for the private operator and general aviation, it uses the same high-discharge batteries as other Powervamp packs.
- 2400 Peak amps
- Sealed lead acid AGM battery
- Cleared for air transportation
- External charger with LED status
- Tough polyethylene case
- 3 LED battery charge status
- Aircraft cable with heavy-duty Nato connector
- External 750A output fuse
Product Information
Product Information
A tough, budget-priced, dual voltage aircraft start unit designed for the private owner and general aviation operator. It uses the same high quality, high-discharge batteries as used in Powervamp’s premium aviation product range. Ideal for smaller turbine aircraft and helicopter operators, all piston aircraft, or where the starting of 24V trucks and 12V vehicles is also a requirement.
The powerful dry-cell batteries are isolated via the internal 500A key switch allowing the aircraft start unit to be cleared for air- transportation. An externally mounted 750A fuse offers protection against excessive use or a dead short across the output cables.
The impact resistant polyethylene case allows the start unit to sit in snow or flooded sites up to 300mm (12in) deep without water ingress.
The 12/24V GA Pack is supplied with an external 10A charger and two lead sets for both aircraft and automotive applications. The solid state LED display shows battery status when the pack is switched on. An audible reverse polarity alarm warns against incorrect connection.
The 12/24V GA Pack is fitted with a switched USB socket for the charging of a mobile phone or tablet device.
Optional accessories include longer lead sets and an on board charging kit (OBCK) to allow the pack to be charged via any automotive 12V DC vehicle cigarette/auxiliary socket.
Supplied with:
2m Croc Lead
2m Nato Lead

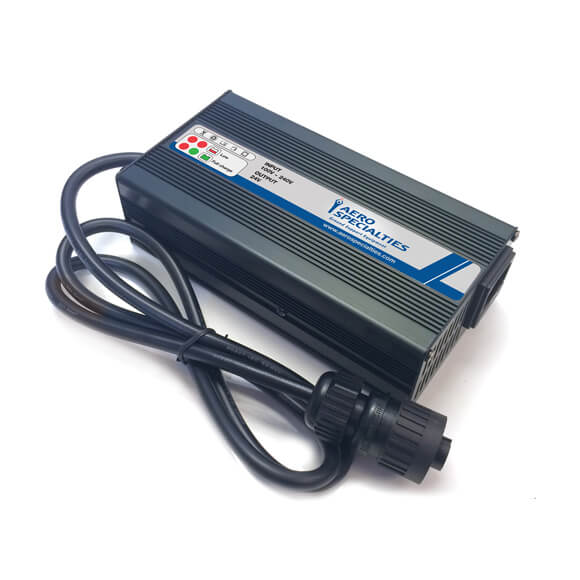

12V 4A External Charger
110/240V Country Specific Input Lead
Optional Extras:
4m Nato Lead
4m Croc Lead
2m Piper Lead
4m Piper Lead
12V DC Automobile Charging Kit
GA Pack Trolley
Typical power plant*
Arrius, Rolls-Royce 250, PT6A-27. Continental and Lycoming piston. Grumman American GA-7 Cougar. 24V diesel to ten litres (600 cu in), diesel to 14 litres, or power plants of a similar specification
All Features
Product information
- High powered sealed lead acid AGM batteries
- Cleared for air transportation
- External charger with LED status indicator
- 3 LED battery charge status
- 2m (6ft) aircraft cable with Nato connector
- 2m (6ft) lead with 1000A alligator clips for direct battery connection
- Tough polyethylene case
- Audible reverse polarity warning buzzer
- Voltage spike protection
- Auxiliary socket for charging and plug-in accessories
- Output key switch isolator
- External 750A output fuse
Technical Specs
Technical Specifications
| Peak amps |
2400A |
| Nominal voltage | 12V / 24V DC |
| Standing voltage | 12.8V and 25.6V |
| Amp/hour capacity | 26 Ah @ 10hr rate (20°C) |
| Fuse rating | 750A |
| Operating temp | -40°C to +45°C (-45°F to 114°F) 50-60Hz / single phase |
| Case | Moulded impact resistant polyethylene |
| Aircraft cable | 2m (6ft) lead set with 1000 amp alligator clips) |
| Charger | 10A 3-stage external charger / 110-230V AC/ 50-60Hz / single phase |
| Dimensions | H 355mm (14in), L 180mm (7in), W 150mm (6in) |
| Weight | 25kg (55lb) |
| NGAGE | KD628 |
Video
Powervamp DC Ground Power Aviation Showcase
The following video has been created to showcase a small selection of aviation products from our DC range of GPU's. See the video below for a look at the aviation showcase.
Relevant Articles

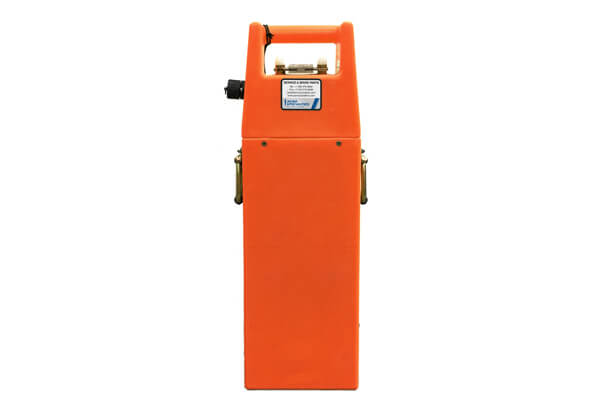

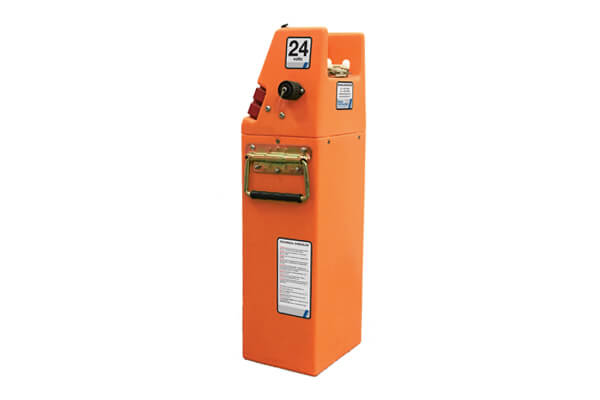

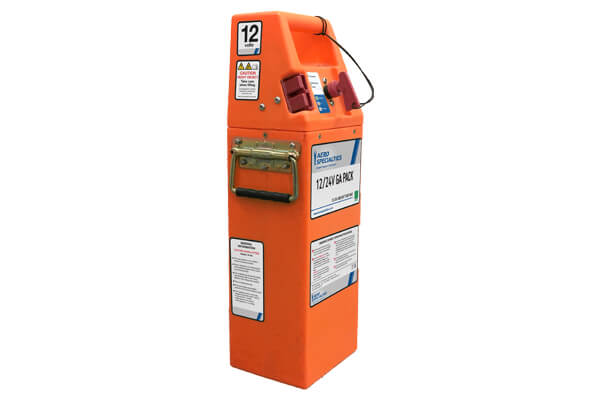

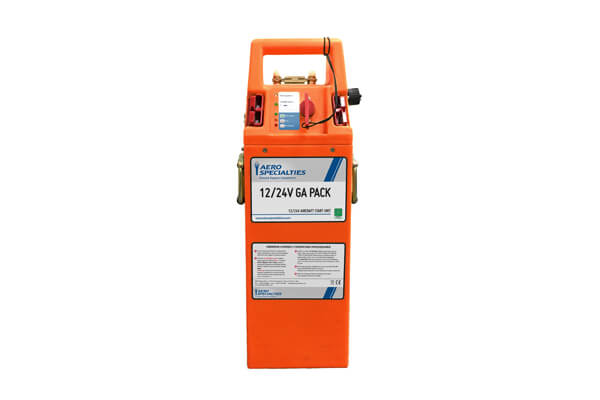

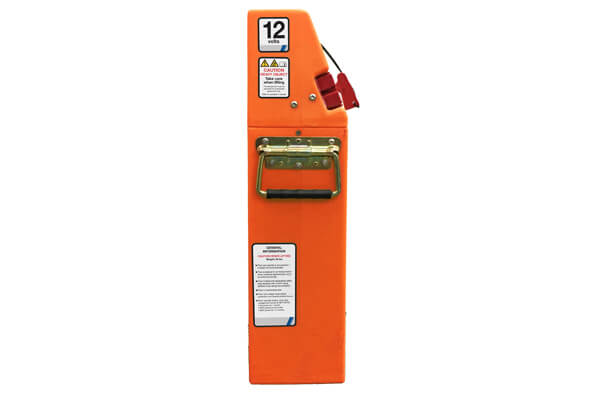

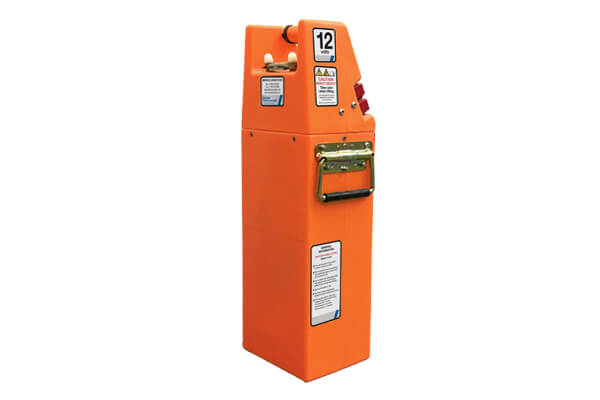

Additional Images
