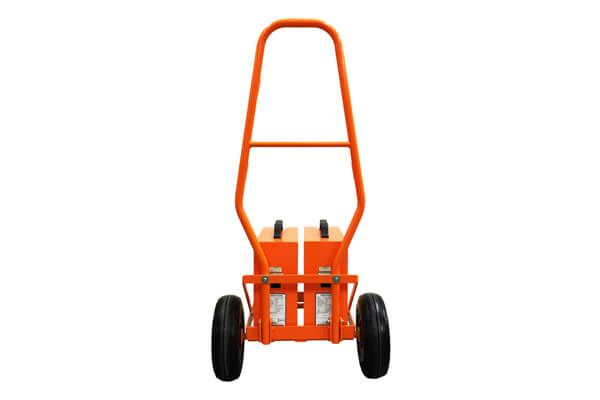

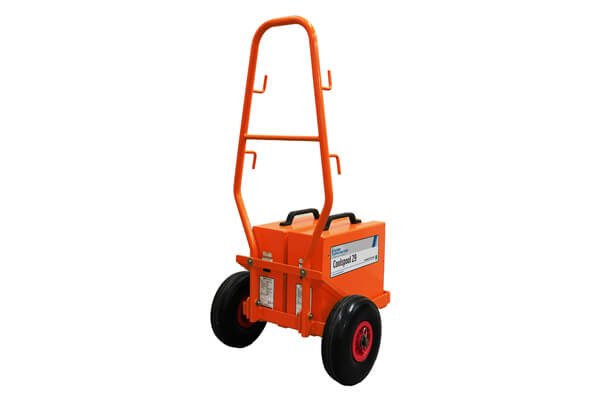

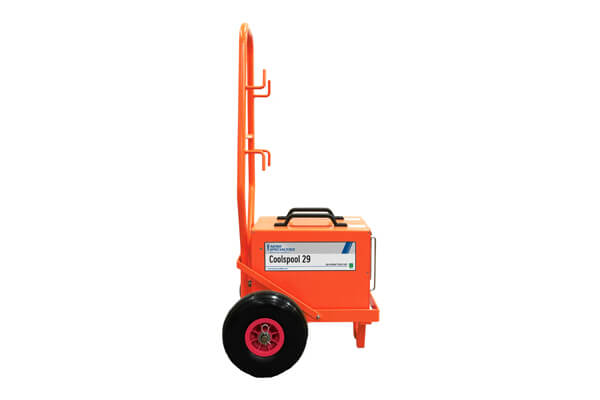

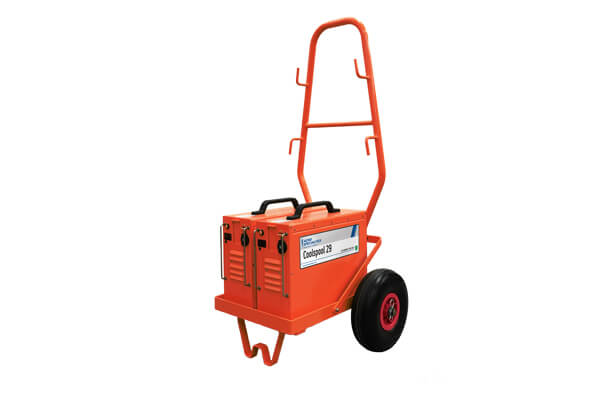

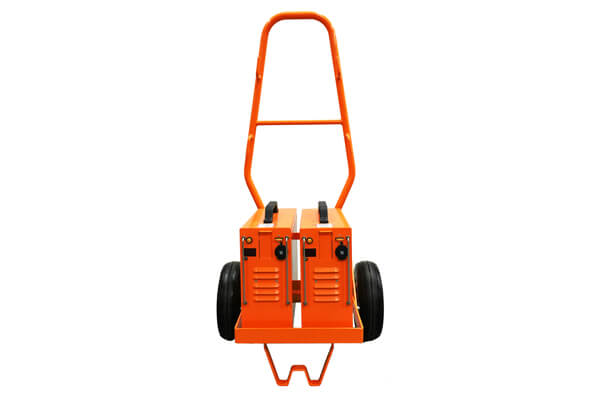

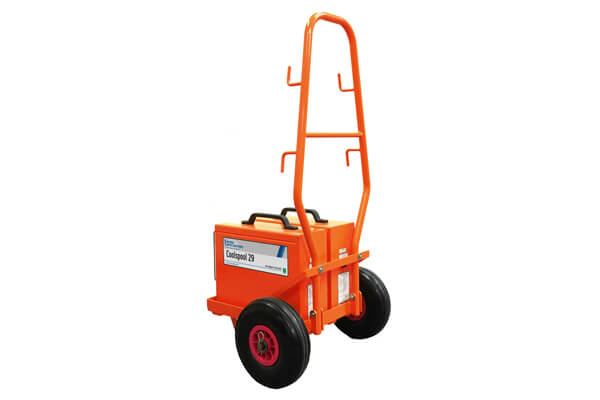

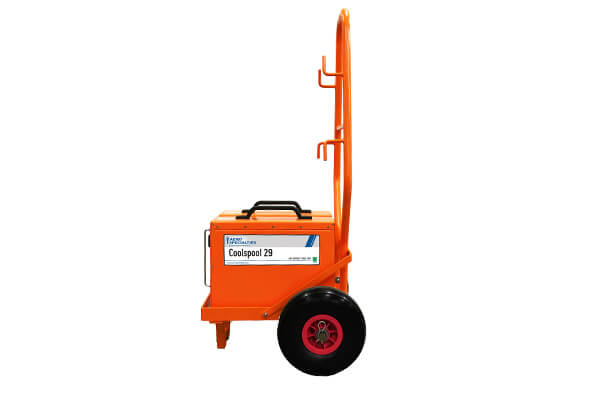

Coolspool 29 Twin
28V Aircraft Start Unit

Need help picking
the right GPU?

Try our new GPU
Selector Guide

Two powerful 28V DC aircraft start units connected in parallel to double the turbine starting capacity, suitable for larger twin turbine aircraft and helicopters where additional amp/hour capacity is required to maintain voltage under load.

4800 peak amps
Sealed lead acid AGM batteries
Cleared for air transportation
Internal charger with LED status

Aluminium case with carry handle
Solid state voltmeter
Auxiliary/accessory socket
Available in 26V or 28V DC versions

, Enquire here Datasheet

Product Information

Size and weight are important considerations for hand-portable aircraft start units. Situations exist where additional battery capacity and performance is required while retaining the essential benefits of mobility or ‘hand-portability’. The solution, pioneered by Powervamp more than 20 years ago and now adopted throughout the industry, is to connect two units in parallel to create the Coolspool 29 Twin.

The Coolspool 29 is available in two nominal output voltages, 26V DC or 28V DC. Upper Fadec limits vary according to the manufacturer’s software and for this reason two versions of the Coolspool 29 are available. When compared to a 24V DC start unit of the same capacity, the Coolspool 29 delivers a significantly higher performance, resulting in faster spool-ups and cooler starts impacting directly on turbine life.

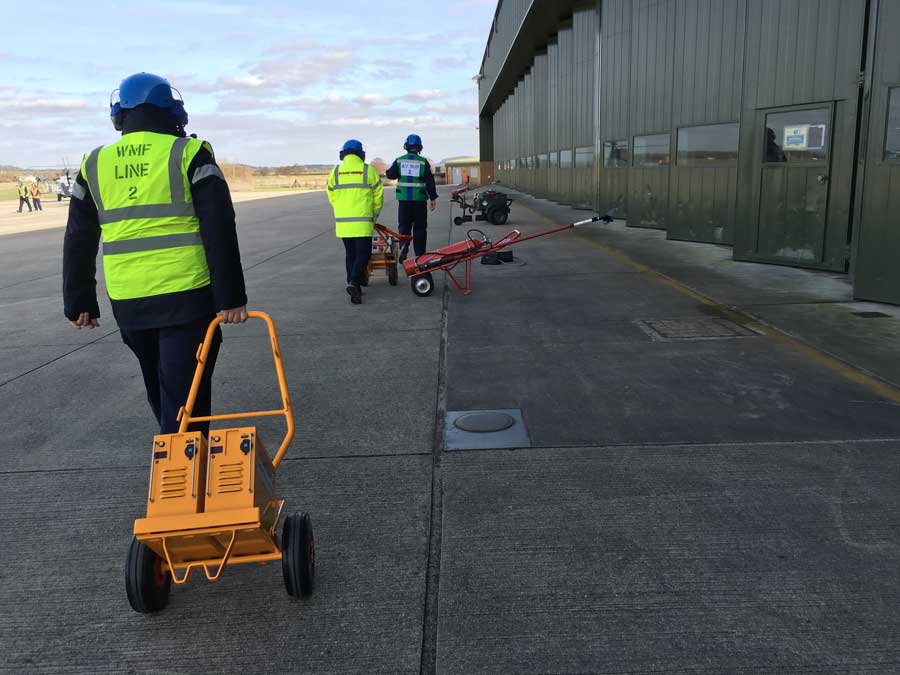

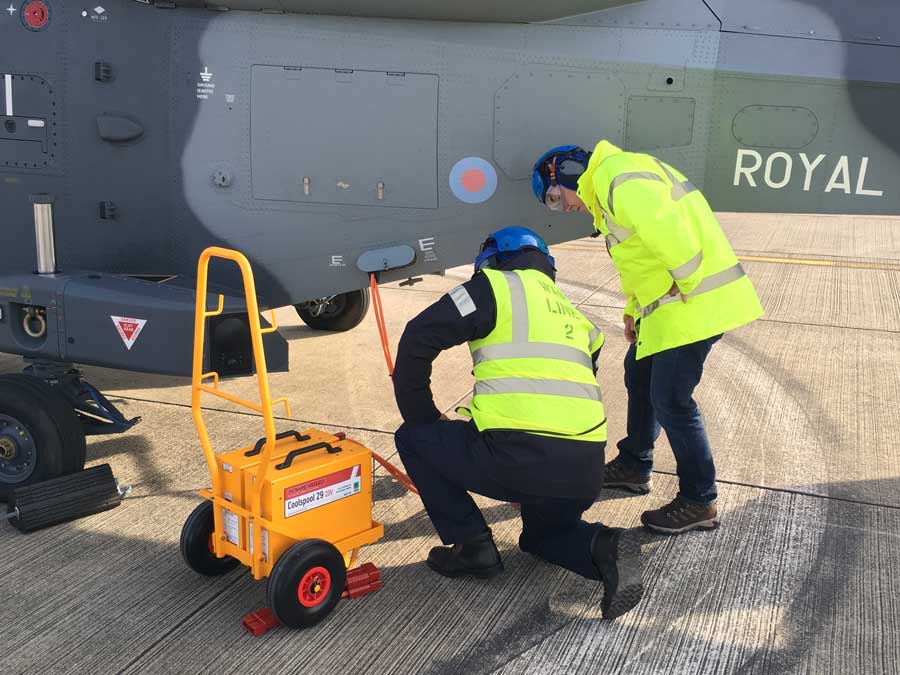

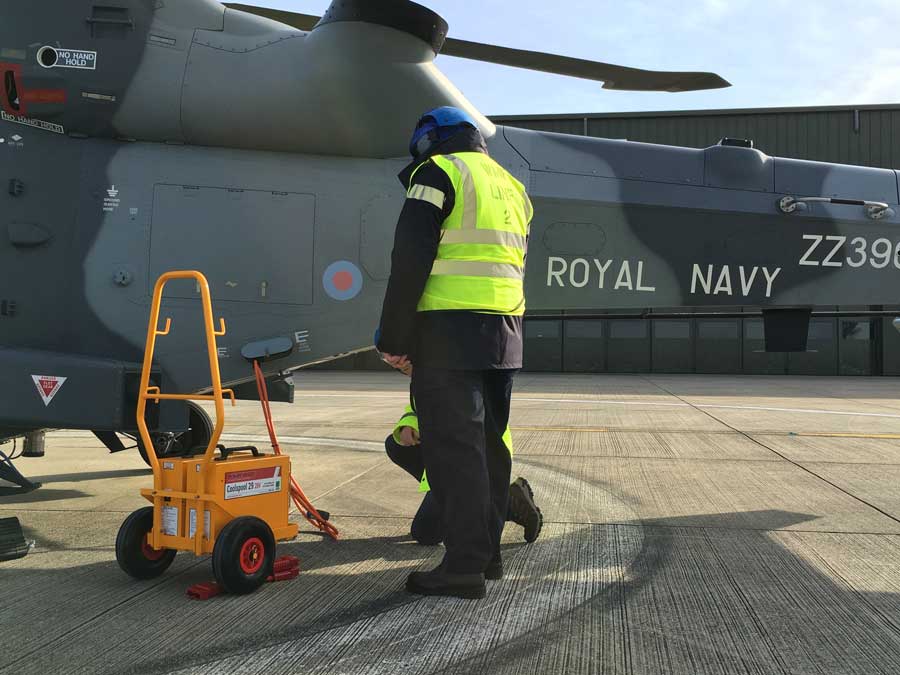

The Coolspool 29 Twin can be split into separate modules for ease of transport and is designed to be carried on board for emergency power or turbine starting. This aircraft start unit is fitted with an automatic 3-stage internal charger for maximum cell longevity and is suitable for starting larger turbine aircraft and helicopters.

Each Coolspool 29 is fitted with solid state voltmeter with ‘push to view’ button to monitor battery voltage. A spring-loaded output cover ensures the aircraft start unit is cleared for air transportation. Supplied with Nato lead set, charge lead and heavy-duty canvas protective jacket

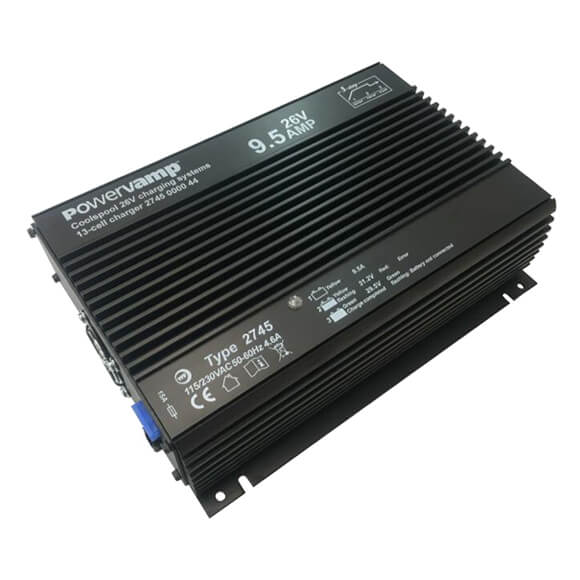

Frequent users of the Coolspool 17 and Coolspool 29 units who require expedited charge times should consider the optional Coolspool fast charger. The Powervamp Coolspool fast charging system is designed to re-charge your Coolspool unit quickly and safely whilst also optimising the batteries for maximum longevity.

Supplied with:

2m Nato Lead

110/240V Country Specific Input Lead

Parallel Joining Connector

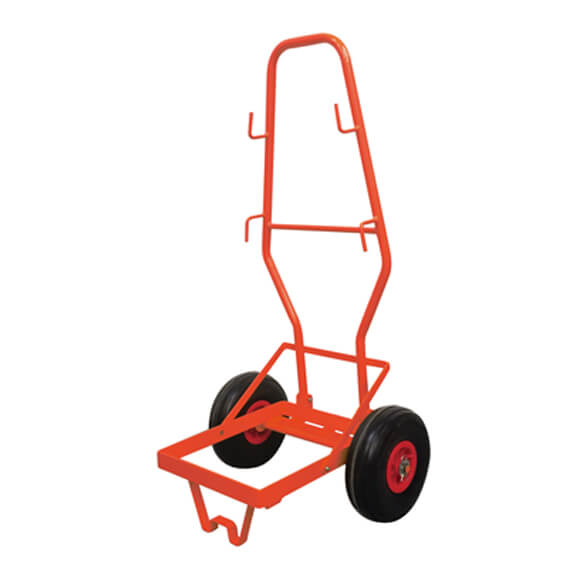

Double Trolley

Padded Jacket x2

Optional Extras:

4m Nato Lead

Coolspool Fast Charger

Typical power plant*

TPE 331, PT6-67, Arrius, or power plants of a similar specification

All Features

Product information

High powered lead acid AGM batteries

Cleared for air transportation

Internal chargers with LED status indicator

Corrosion resistant aluminium case with carry handle

Controls protected by twin front protection bars

Aircraft cable with heavy duty Nato connector

Spring loaded output connector cover

Auxiliary socket for plug-in accessories

Fitted with rubber anti-slip shock absorbent feet

Heavy duty canvas protective jacket

Double trolley

Technical Specs

Technical Specifications

Peak amps	4800A
Nominal voltage	26V or 28V DC depending on model
Standing voltage	27.8V or 30V DC depending on model
Amp/hour capacity	52 Ah @ 10hr rate (20°C)
Operating temp	-40°C to +45°C (-40°F to 113°F)
Case	Aluminium with shock absorbing feet
Voltmeter	Solid state LED, IP65
Aircraft cable	2m (6ft) with heavy duty rubber Nato connector
Parallel cable	Heavy duty polarized connector
Charger	2 x 1.9A 3-stage internal charger / 90-264V AC/ 47-63Hz / single phase
Dimensions	H 1100mm (43in) , L 500mm (19in), W 560mm (22in) including trolley
Weight	70kg (154lb)
NSN	2995-99-230-9194
NGAGE	KD628
