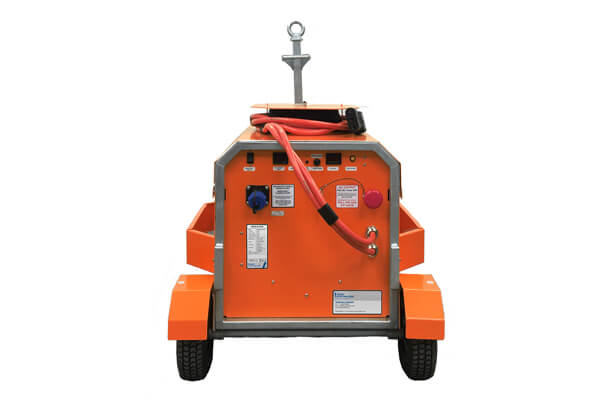

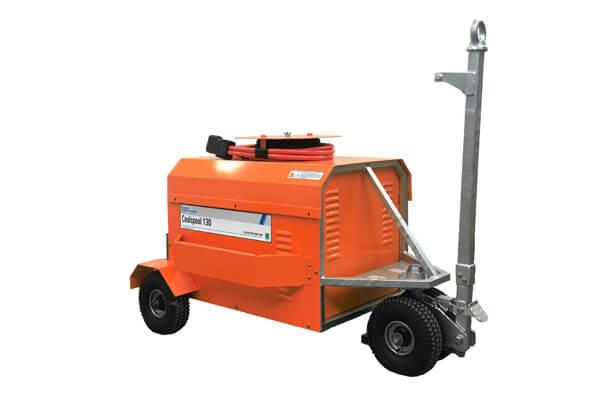

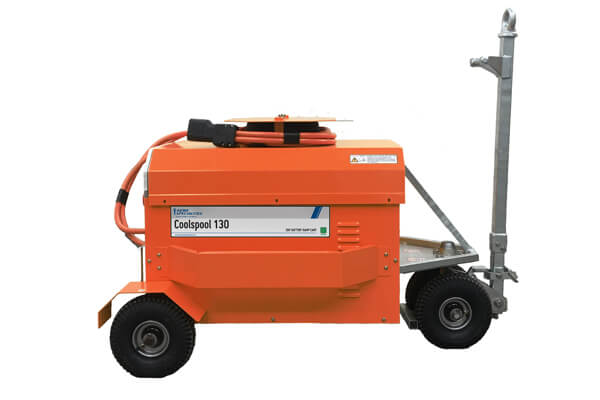

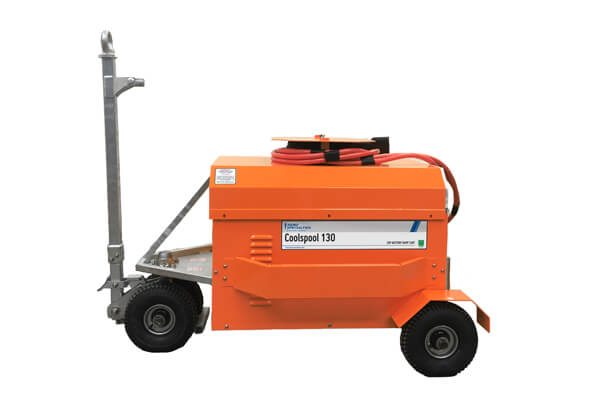

Coolspool 130
28V Battery Ramp Cart

Need help picking
the right GPU?

Try our new GPU
Selector Guide

High powered / high amperage 28V DC aircraft start unit constructed from a galvanised steel frame with aluminium panels. Coolspool ramp carts also deliver 75A continuous power for avionics.

4000 peak amps
Sealed lead acid AGM batteries
Cleared for air transportation
75A / 28V DC continuous power supply

Solid state voltmeter
Solid state ammeter

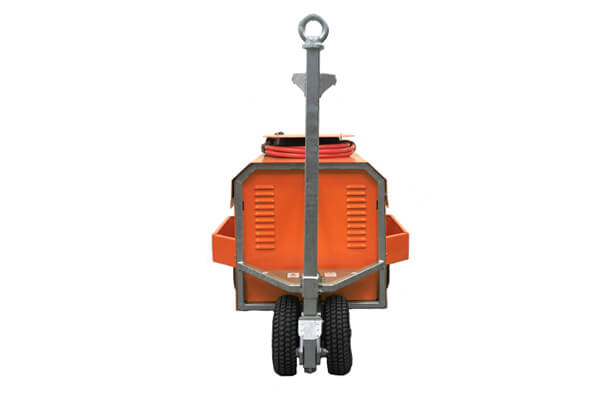

Removable tow arm
Heavy duty push/pull isolator

, Enquire here Datasheet

Product Information

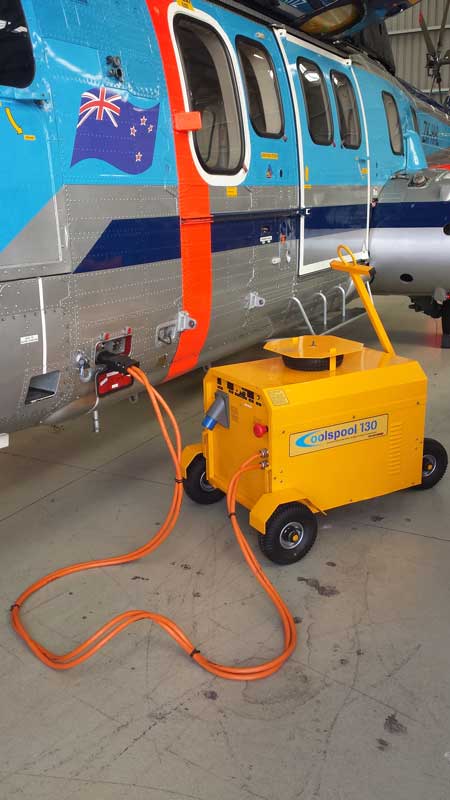

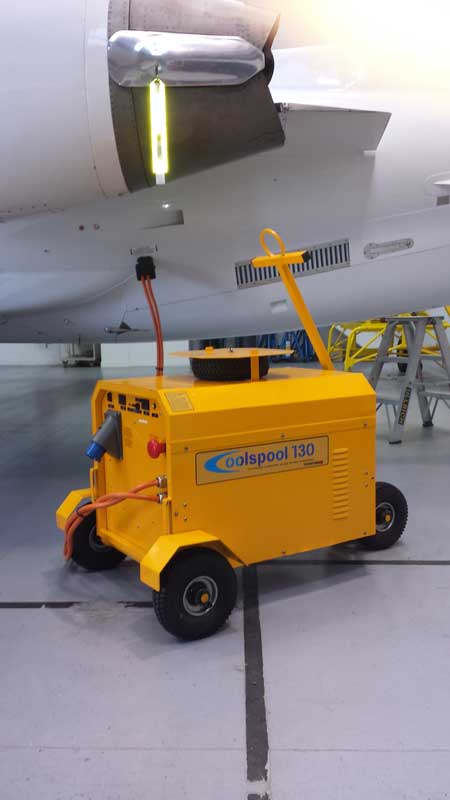

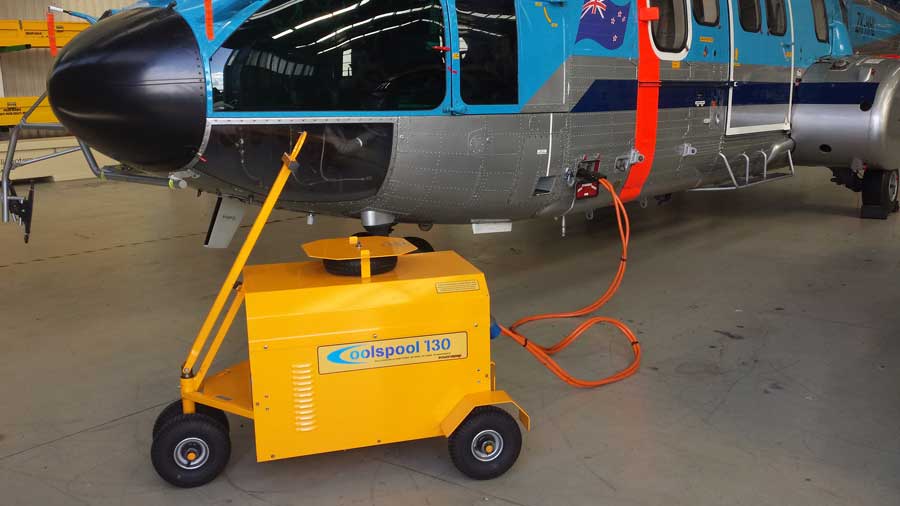

The Coolspool 130 28V DC battery cart is designed to suit the requirements of a range of applications, from small corporate jet and medium size helicopter operators and FBOs to large fleet operators or FBOs supporting multiple DC business aircraft and requiring more capacity for frequent starts, compressor washes or avionics use.

A combination of high-discharge maintenance-free batteries, each of 130 Ah capacity are connected in series to provide 130 Ah capacity. (Where increased capacity is required, the cart design allows a second set of batteries to be connected in parallel, thereby doubling the capacity to 260 Ah.)

The Coolspool 130 is available in two nominal output voltages, 26V DC or 28V DC. Upper Fadec limits vary according to the manufacturer’s software and for this reason two versions of the Coolspool are available.

All models of cart are fitted as standard with an internal 75A quick- demountable charger/power supply module providing rapid recharge of batteries. Switching from ‘charge mode’ to ‘aircraft mode’ allows up to 75A of continuous power to the aircraft for extended avionics use and software updates. Each Coolspool is fitted with a solid state voltmeter and charge ammeter, lockable heavy-duty push/pull emergency isolator switch, Nato lead set, charge lead and spare wheel.

The Coolspool range of battery carts is now recognised worldwide for the massive financial savings in fuel and maintenance they deliver to operators who have replaced diesel GPU’s with these silent maintenance and pollution free rechargeable mobile battery carts.

Supplied with:

Spare Wheel

Nato Lead

Typical aircraft*

Coolspool 130: PT6A-27, Makila, TPE 731, GE T700, AE3007, CF34 Coolspool 260: PT6C-67, Makila, TFE 731, ALF 502, HTF7000, RR Tay, or power plants of a similar specification

FBOs, multiple heli-ops requiring heavy comp washes, training, civil and military

Ramp ops – large single shaft and 8–14 seat commuters, limited despatch or regional aircraft

All Features

All features

High powered sealed lead acid AGM batteries

Cleared for air transportation

75A 28V DC internal power supply / charger

Charging / charge complete LED indicators

'Aircraft mode' switch for continuous 28V DC power to aircraft

Corrosion resistant galvanised frame with aluminium panels

Removable tow arm

Pneumatic tyres

Spare wheel fitted to roof

Aircraft cable with heavy duty Nato connector

Harsh environment input cable with plug

Heavy duty output isolator with replaceable contacts

Security 'R' clip isolator lock

Sold state voltmeter with 'push to view' feature

Sold state ammeter with 'push to view' feature

Technical Specs

Technical Specifications

CoolSpool 130
Peak amps	4000 amps
Nominal voltage	26V or 28V DC depending on model
Standing voltage	27.8V DC or 30V DC depending on model
Amp/hour capacity	130Ah @ 10hr rate (20C)
Operating temp	-40C to +50C (-40F to +22F)
Case	Galvanised steel frame with alloy panels
Voltmeter / ammeter:	Solid state LED, IP65
Aircraft cable	4m (13ft) with heavy duty rubber Nato connector
Output current	75A @ 28V DC (aircraft mode)
Charger	75A 2-stage internal charger (charge mode)
Input voltage	180-264V AC / 47-63Hz
Input current	16A @ 230V AC / 20A @ 180V AC / single phase (typical)
Input cable	3m (9ft) with 16A 3-pin 6h blue plug
Cooling:	Forced ventilation (internal power supply)
Tow eye dimensions	50mm (2in) for occasional / low speed towing
Dimensions	H 800mm (32in) L 1270mm (50in) W 782mm (31in)
Weight	157kg (346lb)
NCAGE:	KD628

Video

Product Videos

In a series of on-going acceptance trials with various aircraft operators, one of which is shown here at a recent trial in Marseille, France, Powervamp's latest design of compact 28 volt DC battery cart the Coolspool 410, is seen powering the ATR72 aircraft and starting both engines. You will hear the initial turbine spool up under the huge power delivered by Powervamp Coolspool 410 GPU as the starter turns the turbine. As fuel is introduced into the starboard engine the turbine rapidly spools up and becomes self-sustaining. At this stage you will see that the propeller is not turning. This is because the ATR 72 features a "Hotel power Mode" wherein the propeller can be braked with the turbine running at ground idle . This allows the Starboard main turbine to provide the power to all the aircraft systems via the normal starter /generator without the aircraft requiring a separate APU (auxiliary power unit).

This feature allows the aircraft to park at the ramp with personnel operating around the aircraft without the unacceptable danger of a rotating propeller. Once cleared for departure and pushed back, the crew will normally cross start the Port engine, whereupon the propeller brake is released on the starboard engine. What is shown is a simulated ramp operation with lengthy pre-flight checks and a double start with prop brake release and both propellers turning and amps and volts measured in the final successful test of the day.
