High powered / high amperage 28V DC aircraft start unit constructed from a galvanised steel frame with aluminium panels. Coolspool ramp carts also deliver 75A continuous power for avionics.

  • 4700 peak amps
  • Sealed lead acid AGM batteries
  • Cleared for air transportation
  • 75A / 28V DC continuous power supply
  • Solid state voltmeter
  • Solid state ammeter
  • Removable tow arm
  • Heavy duty push/pull isolator

Product Information

Product Information

The Coolspool 410 28V DC battery cart is designed for use on DC regional jets (ERJs) and DC turboprop aircraft in scheduled airline services. Using maintenance-free ultra- high-discharge TPVRLA (thin plate valve regulated lead acid) batteries, the Coolspool 410 delivers the combination of instant high amps for starting with the key feature of guaranteed pure DC waveform, essential for the highly sensitive electronics on some modern DC aircraft.

The Coolspool 410 battery cart has proved itself as a directreplacement for diesel ground power at the ramp. Operating at a fraction of the cost of a diesel GPU, the Coolspool 410 delivers huge cost savings for airlines. Its zero carbon footprint and noiseless operation also benefit operators with its environmental and marketing advantages, while its total silence significantly improves the working conditions of ramp personnel through the absence of fatiguing noise.

Proven over many years of service since their first introduction more than 12 years ago, the large Coolspool carts are rapidly gaining in popularity as regional airlines in the Caribbean, Pacific, South America, the UK and Europe expand their turboprop fleets and seek ways to reduce operating costs. With its low initial capital investment and very low operating costs, the Coolspool 410 has proved to be the perfect GPU where new destinations or infrequent services demand cautious investment.

The simplicity of operation and lack of maintenance makes the Coolspool 410 ideal for use at smaller airports, where gate agents or airline personnel often perform multiple tasks; while at major hubs, a regional airline with multiple departures using the Coolspool 410 as the source of its ground power can expect to experience huge maintenance and fuel savings.

Supplied with:

4m Hard Wired Nato Lead

4m Hard Wired Nato Lead

Beacon Light

Beacon Light

Wheel brake system

Wheel brake system

BC80 External Fast Charger

BC80 External Fast Charger

Powervamp spare wheel for coolspool410 and hybrid300

Spare Wheel

Typical power plant*

DC regional jets and turboprop airline operations PT6C-67, TPE 331-12, RR Dart 356, RR AE3007A, PW121, PW127, PW150A, ALF 502, CF34B, BR710, or power plants of a similar specification

Coolspool Coolspool Coolspool

All Features

All features

  • High powered sealed lead acid AGM batteries
  • Cleared for air transportation
  • 75A 28V DC internal power supply / charger
  • Engine start counter
  • Roof mounted 'power on' beacon with low voltage alarm
  • Corrosion resistant galvanised frame with aluminium panels
  • Roof mounted cable storage container
  • Cold weather protection / anti-cold soak insulation
  • Foot operated parking brake
  • Pneumatic tyres
  • Rear suspension
  • Replaceable side and rear bumpers
  • Spare wheel (supplied loose)
  • Aircraft cable with heavy duty Nato connector
  • Heavy duty output isolator with replaceable contacts
  • Security 'R' clip isolator lock
  • Solid state voltmeter with 'push to view' feature
  • Solid state ammeter with 'push to view' feature

Technical Specs

Technical Specifications

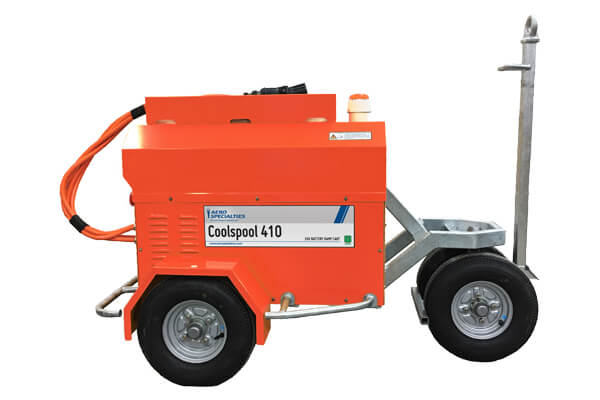

CoolSpool 410
Peak amps 8000 amps
Nominal voltage 26V or 28V DC depending on model
Standing voltage 27.8V DC or 30V DC depending on model
Amp/hour capacity 410Ah @ 10hr rate (20C)
Operating temp -40C to +50C (-40F to +22F)
Case Galvanised steel frame with alloy panels
Voltmeter / ammeter: Solid state LED, IP65
Aircraft cable 4m (13ft) with heavy duty rubber Nato connector

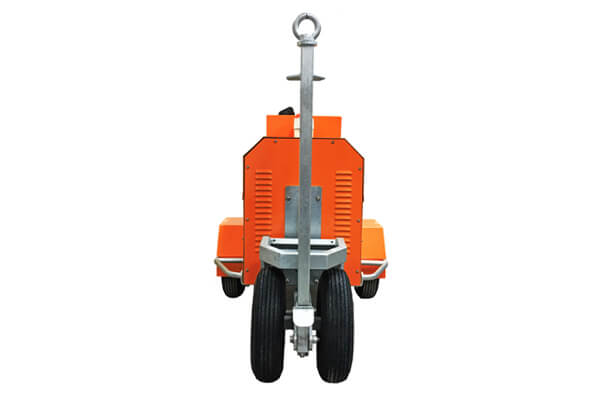

Tow eye dimensions 50mm (2in) for occasional / low speed towing
Dimensions H 950mm (37in) L 812mm (32in) W 1500mm (59in)
Weight 500kg (1102lb)
NCAGE: KD628

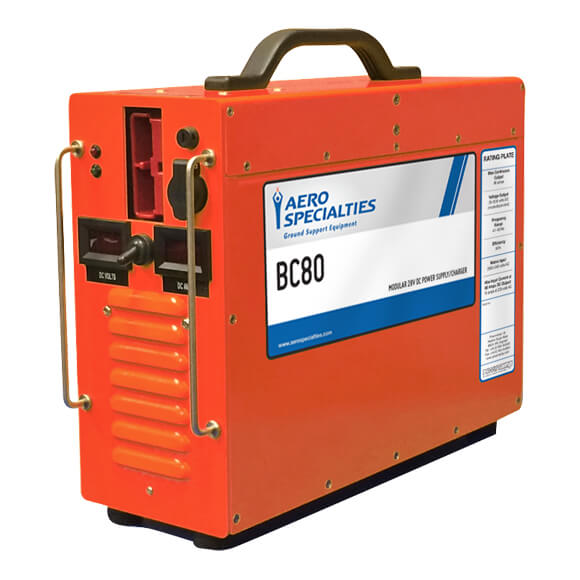

External BC80 Charger
Type 75A 2-stage external charger / 180-264V AC / 47-63Hz / single phase
Input current 16A @ 230V AC / 20A @180V AC / single phase (typical)
Input cable 1m with 16A 3-pin 6h blue plug
Cooling Forced ventilation
Protections Thermal, current overload, short circuit, over voltage
Dimensions L 435 (17in), W 135mm (5in), H 340 (13in)
Weight 11kg (24lb)

Video

Product Videos

In a series of on-going acceptance trials with various aircraft operators, one of which is shown here at a recent trial in Marseille, France, Powervamp's latest design of compact 28 volt DC battery cart the Coolspool 410, is seen powering the ATR72 aircraft and starting both engines. You will hear the initial turbine spool up under the huge power delivered by Powervamp Coolspool 410 GPU as the starter turns the turbine. As fuel is introduced into the starboard engine the turbine rapidly spools up and becomes self-sustaining. At this stage you will see that the propeller is not turning. This is because the ATR 72 features a "Hotel power Mode" wherein the propeller can be braked with the turbine running at ground idle . This allows the Starboard main turbine to provide the power to all the aircraft systems via the normal starter /generator without the aircraft requiring a separate APU (auxiliary power unit).

This feature allows the aircraft to park at the ramp with personnel operating around the aircraft without the unacceptable danger of a rotating propeller. Once cleared for departure and pushed back, the crew will normally cross start the Port engine, whereupon the propeller brake is released on the starboard engine. What is shown is a simulated ramp operation with lengthy pre-flight checks and a double start with prop brake release and both propellers turning and amps and volts measured in the final successful test of the day.
