Solid state lightweight power supply capable of supplying up to 50A at 28V DC for avionics use or 31.5V DC for rapid recharge of Powervamp's 28V DC Coolspool aircraft start units.

  • 50A / 28V DC continuous power
  • Solid state voltmeter
  • Protective jacket included
  • Light aluminium case with handle
  • Short circuit / current limit protection
  • Mains on/off switch
  • Power supply LED status indicators
  • Rubber, anti-slip, shock absorbent feet

Product Information

Detailed Information

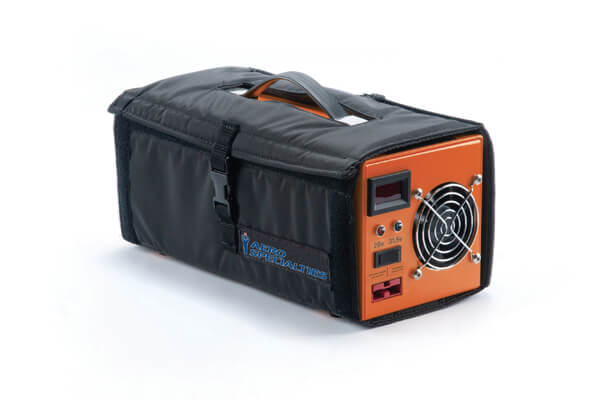

The PS50M is a solid state hand-portable combined charger/power supplies delivering a maximum of 50A at pre-set voltages of 28V DC for avionics use or 31.5V DC for the rapid re-charging of Powervamp’s unique 28V DC Coolspool portable aircraft start units. Voltage selection is by front-mounted switch.

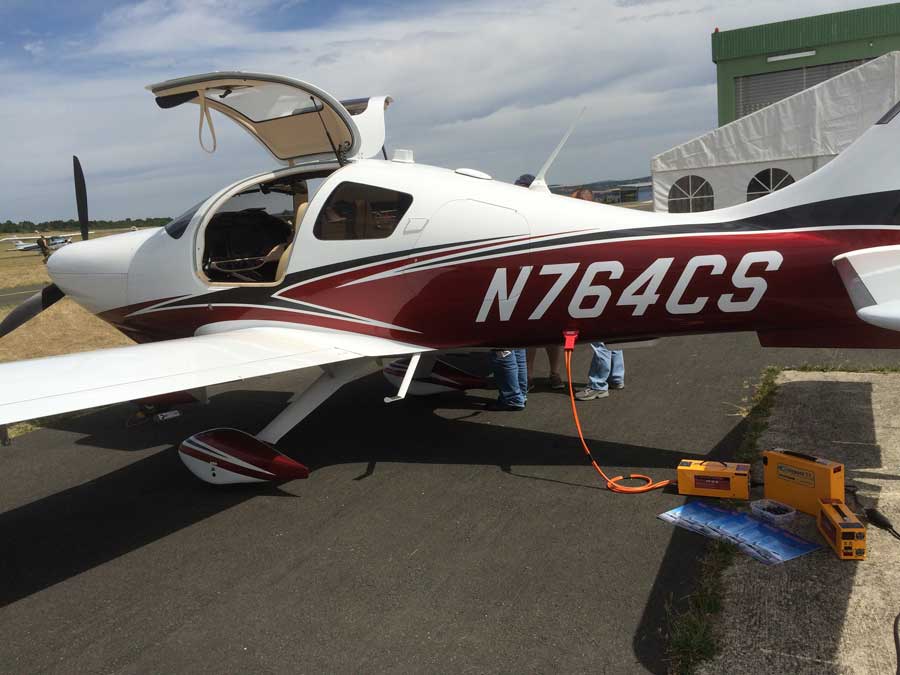

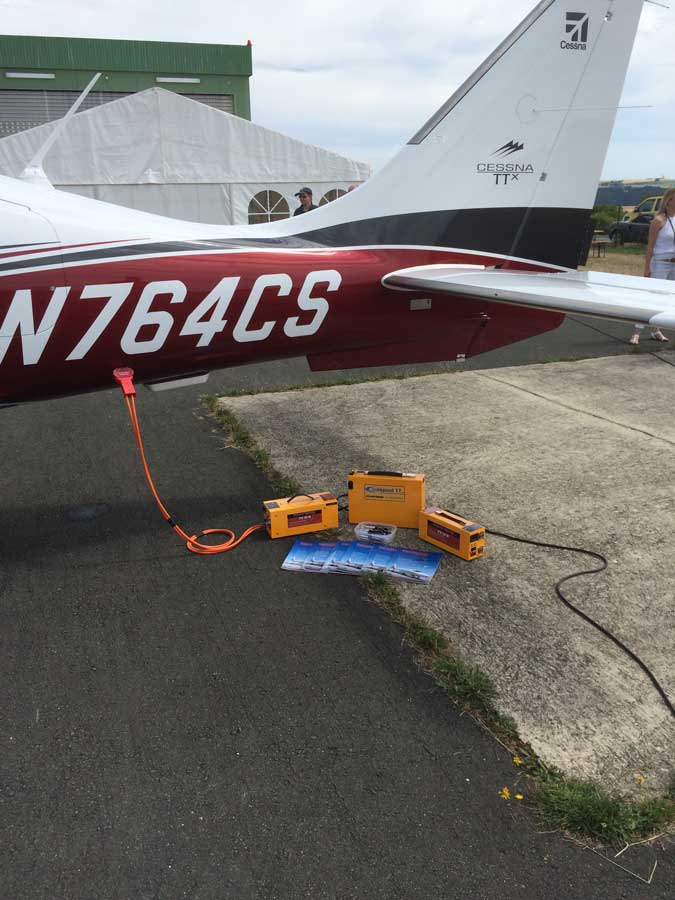

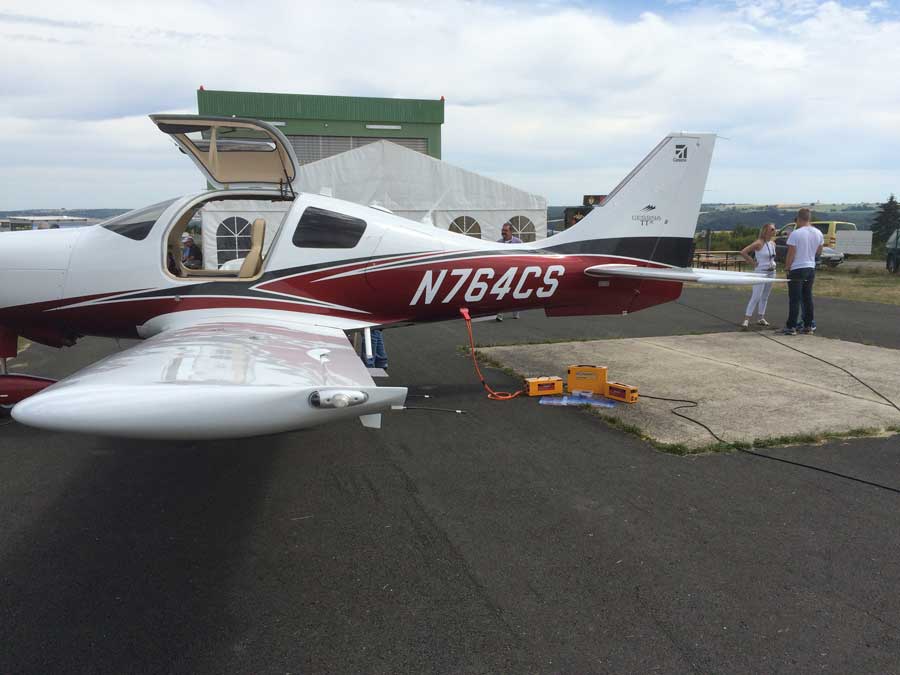

The PS50M can be connected directly to the aircraft’s external ground power receptacle or to any of Powervamp’s portable battery start units* and is primarily for operators of small to medium helicopters, VLJs and DC business jets to citation size requiring a source of clean stable DC power for software updates.

The front-mounted quick-disconnect output connector enables the PS50M to be used as a free-standing portable bench-mounted power supply when used with optional lead sets or alligator clips.

Using an optional connector set, the PS50M can operate in parallel with compatible Powervamp portable start units, delivering continuous power up to their maximum output. Much higher short-term power is then delivered on demand direct from the aircraft start unit.

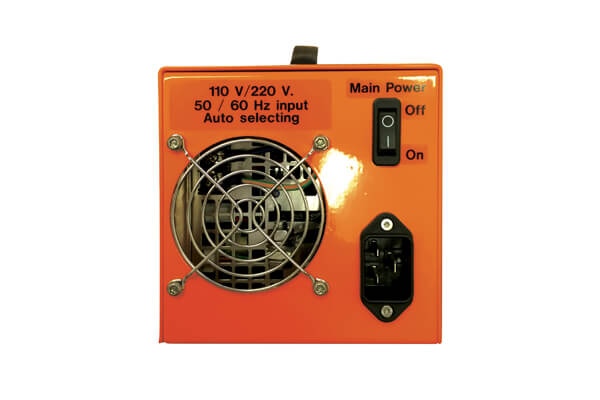

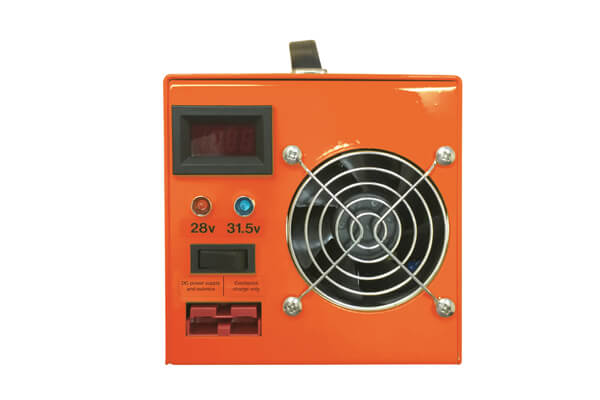

Automatic input voltage selection 90–264V AC/ 47–63Hz allows international use. A solid state voltmeter displays the output voltage with coloured LEDs indicating output voltage selection. Supplied with Nato lead set, input lead and heavy- duty canvas protective jacket.

Supplied with:

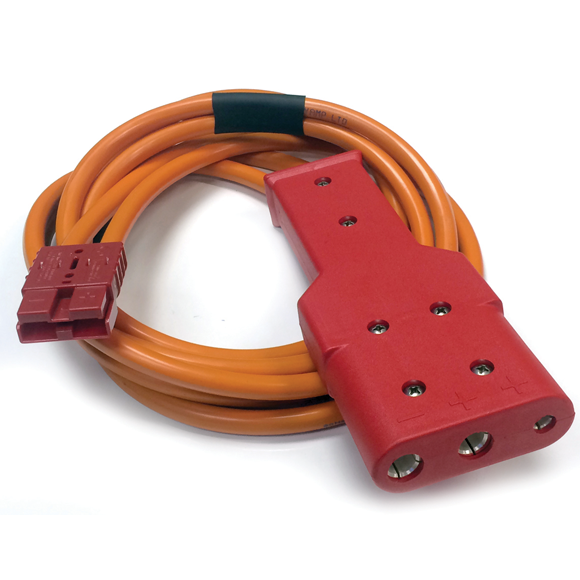

2m Nato Lead

2m Nato Lead

110/240V Country Specific Input Lead

110/240V Country Specific Input Lead

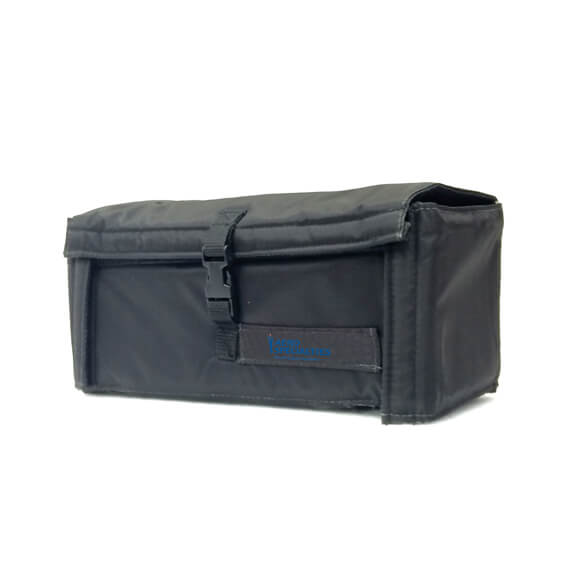

Padded Jacket

Padded Jacket

Optional Extras:

4m Nato Lead

4m Nato Lead

2m Alligator Clips

2m Alligator Clips

4m Alligator Clips

4m Alligator Clips

Rechargeable Inspection light

Rechargeable Inspection Light

Typical aircraft type**

GA Pack GA Pack

All Features

All Features

  • 28V DC / 31.5V DC selectable output
  • Mains on/off switch
  • Output voltage selector switch
  • Output voltage LED status indicators
  • Short circuit / current limit protection
  • Corrosion resistant aluminium case with lie-flat carry handle
  • Aircraft cable with Nato connector
  • Fitted with rubber anti-slip shock absorbent feet
  • Heavy duty canvas protective jacket

Technical Specs

Technical Specifications

Output voltage 28V DC and 31.5V DC (selectable)
Output current 50A
Output ripple <150mV p-p
Input voltage 90-264V AC / 47-63Hz
Input current 8A @ 230V AC / 17A @ 115V AC single phase (typical)
Operating temp -20C to +50C (-2F to +122
Case Aluminium with shock absorbing feet
Voltmeter Solid state LED, IP65
Aircraft cable 2m (6ft) with Nato connector
Cooling Forced ventilation
Protections/td> Thermal, current overload, short circuit, over voltage
Dimensions L 350mm (14in), W 140mm (5in), H 150mm (6in)
Weight 5kg (11lb)
NCAGE KD628
